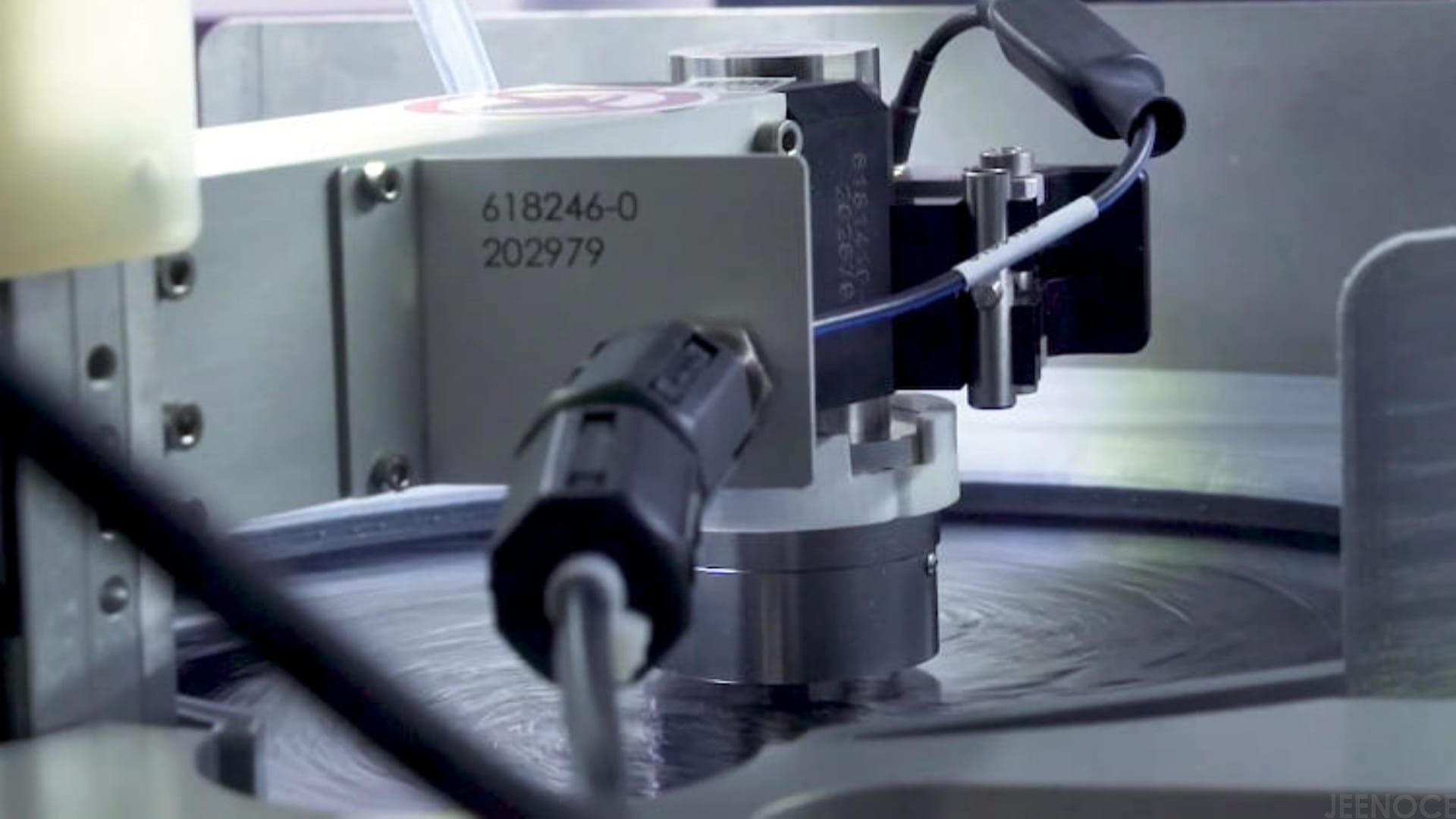

Acoustic wave propagation: SAM uses high-frequency sound waves that travel through materials, interacting with internal features.
Reflection and transmission modes: By analyzing how waves reflect off or transmit through different layers, SAM creates detailed images of internal structures.
Impedance contrast: Variations in acoustic impedance between materials highlight voids, delaminations, cracks, and inclusions—key defects invisible to optical or X-ray methods.
Originating in the 1970s as a prototype technology, SAM has evolved considerably.
Today’s C-mode SAM systems provide superior penetration depth and resolution, especially in layered electronic assemblies.
Compared to X-rays or optical microscopes, SAM offers unique advantages for inspecting non-transparent, multilayered structures without radiation hazards.
SAM plays a vital role in semiconductor packaging, particularly in identifying hidden defects inside flip-chip devices and BGA (Ball Grid Array) assemblies.
Flip-chip inspection and underfill analysis ensure solder joint reliability, essential for Surface Mount Technology (SMT) process integrity.
Detecting subtle internal faults early helps prevent costly failures and supports process optimization.
At Jeenoce, SAM is integrated directly into SMT lines, serving as real-time quality gates.
This proactive approach cuts rework rates by 15-25%, boosting throughput and reducing manufacturing costs.
Our solutions streamline inspections without slowing production, enabling smarter decision-making under tight timelines.
In sum, SAM combines sophisticated acoustic principles with proven technology to deliver non-destructive, high-resolution insights critical for modern electronics manufacturing.
Meeting industry standards is critical for reliable scanning acoustic microscopy (SAM) inspection. JEDEC standards like JESD22-B117 define essential requirements including void size thresholds and test frequencies typically between 15-50 MHz to ensure consistent detection sensitivity. For high-performance electronics, IPC guidelines such as IPC-A-610 and J-STD-001 set strict criteria focused on Class 3 products, ensuring high-reliability solder joints and component integrity.
In military and aerospace sectors, protocols like MIL-STD-883 Method 2030 and ESA standards provide rigorous acceptance criteria for delaminations and other defects, reflecting the critical nature of these applications. Additionally, emerging harmonization efforts align ISO and ASTM standards, especially for additive manufacturing and complex multi-layer composites, with growing case studies validating stack-up integrity through SAM.
At Jeenoce, we’ve integrated automated workflows that maintain full compliance with these standards, enabling efficient, standard-compliant SAM scans. This helps streamline ISO 9001 audit processes while maintaining robust quality gates on SMT lines. For more on reliable SAM solutions tailored to industry needs, explore our industry solutions.
Recent advances in scanning acoustic microscopy (SAM) are dramatically improving both resolution and speed, making defect detection more precise and efficient than ever. High-frequency innovations now feature transducers operating up to 400 MHz, with emerging 1 GHz time-resolved systems capable of detecting defects smaller than 50 microns. This leap forward lets manufacturers identify even the tiniest voids or cracks that were previously missed.
3D acoustic imaging techniques like C-mode scanning acoustic microscopy (C-SAM) combined with broadband technology enable detailed volumetric rendering. This is especially useful for analyzing underfill materials and wire bonds in semiconductor packaging, providing a clear picture of internal structures beyond traditional 2D imaging.
AI and automation are game changers here. Machine learning algorithms automate anomaly detection, drastically reducing scan times by up to 20 times. This speeds up quality control processes without sacrificing accuracy, freeing up valuable resources on the production floor.
New approaches such as ultrasound impedance and speed microscopy allow for viscoelastic property mapping. This helps evaluate material stress in anisotropic composites, a growing requirement in advanced electronics and aerospace applications.
At Jeenoce, we’ve developed custom SAM modules tailored for integration with non-standard equipment. These solutions boost throughput significantly while maintaining top-level inspection accuracy. This flexibility supports smarter manufacturing lines and aligns with the latest industry standards.
Scanning Acoustic Microscopy (SAM) plays a crucial role in detecting hidden defects in semiconductor packaging. It excels at finding voids in flip-chip BGAs, delaminations in multi-chip modules, and porosity in soldered joints—issues that can severely impact device reliability. These defect detection capabilities have made SAM a trusted tool for ensuring product quality in high-reliability electronics.
SAM is deeply integrated into SMT lines, particularly for post-reflow inspection and failure root-cause analysis. By identifying hidden flaws early, SAM helps improve first-pass yield rates to as high as 98%, cutting down costly rework and scrap. This integration streamlines quality gates and supports consistent manufacturing results.
Beyond electronics, SAM is expanding into diverse industries such as medical ultrasound probe manufacturing, biocomposites, and electric vehicle (EV) battery modules. Its ability to deliver precise, non-destructive evaluation aligns perfectly with the demands of scalable smart manufacturing across these sectors.
At Jeenoce, we provide automated SAM workflows tailored for SMT line upgrades, delivering measurable ROI and up to 30% cost savings. Our solutions help manufacturers adopt efficient, standard-compliant acoustic imaging, boosting throughput without compromising accuracy. Learn more about our smart manufacturing innovations and SMT line solutions here.
Scanning Acoustic Microscopy (SAM) comes with its own set of challenges. Common hurdles include scan time inefficiencies—especially when inspecting complex, high-density packages—and issues with sample coupling that can affect image quality. There’s also a trade-off between resolution and penetration depth, limiting defect detection in some advanced semiconductor assemblies.
To tackle these, hybrid approaches combining SAM with X-ray imaging are gaining traction. These setups leverage the strengths of both methods, offering more reliable defect identification. Software-driven stabilization techniques are also improving image clarity, enabling 4K resolution scans that reveal even the smallest anomalies with greater confidence.
Looking ahead, the future of SAM is strongly tied to AI-powered real-time processing. Expect portable SAM units to become standard on factory floors, supporting quick inspections without compromising accuracy. Quantum-enhanced acoustic frequencies could push resolution and speed beyond current limits by 2030. perfectly syncing with Industry 4.0 smart manufacturing demands.
At Jeenoce, we envision SAM-automation hybrids playing a crucial role in predictive maintenance within smart factories. Integrating SAM with automated workflows helps monitor equipment health and product quality continuously, drastically reducing downtime and rework. Our customized solutions focus on boosting throughput and enabling smarter, data-driven decisions for global manufacturers.
For a deeper dive into how advanced scanning acoustic microscopy optimizes SMT line integration, check our insights on SAM applications in semiconductor packaging. Also, explore our take on automation techniques that improve SAM workflow reliability to learn how smart manufacturing can overcome these challenges efficiently.
