Vapor phase soldering (VPS) uses an inert liquid that boils to create a saturated vapor. This vapor transfers heat through condensation—a process that delivers very precise, oxygen-free heating. Think of it like steam gently wrapping around your components, heating them evenly without the risk of overheating.
One major benefit is its fixed boiling point. Since the vapor temperature stays constant, it avoids the spikes that can damage sensitive parts. This creates a uniform heat envelope, so components with different thermal masses—like BGAs or flexible circuits—receive consistent warmth.
Because of these qualities, VPS is ideal for prototyping and manufacturing odd-shaped or complex components. It fits perfectly with smart manufacturing setups aiming for precision and minimal thermal stress.

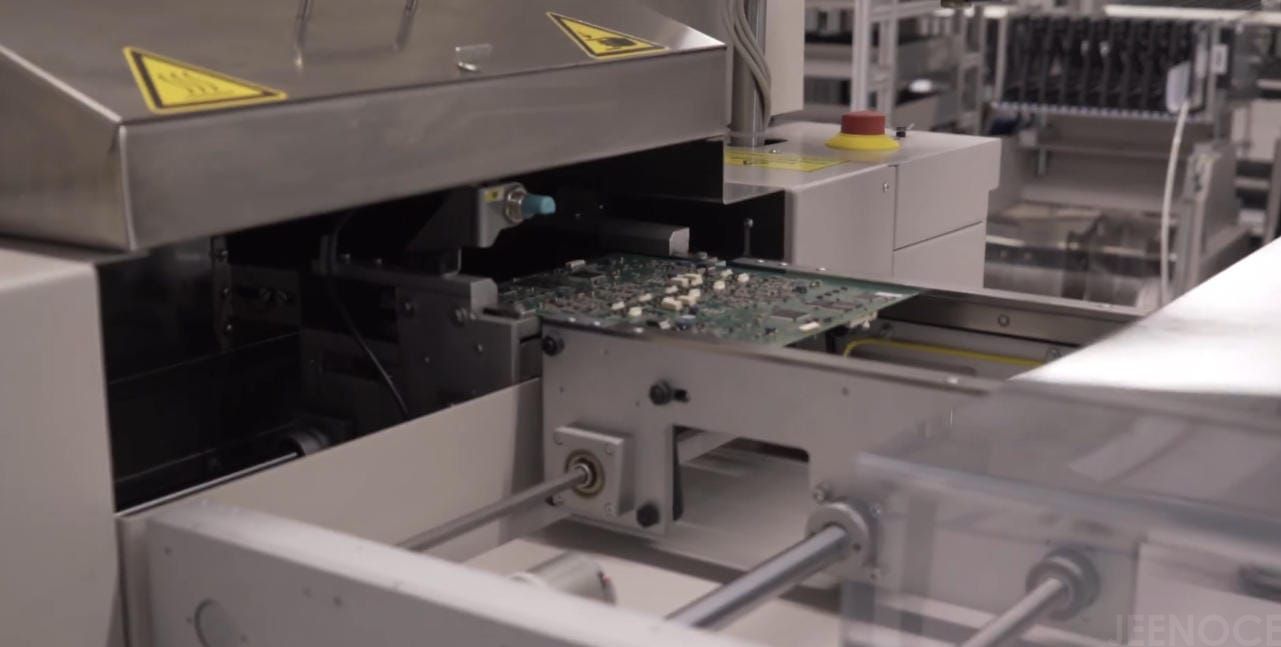

Reflow soldering is the go-to method in most surface-mount technology (SMT) lines across the U.S. It works by circulating hot air, often with nitrogen, through zoned ovens that progressively heat the PCB. The process moves through stages: preheat, soak, peak, and finally, cooling. This controlled airflow melts the solder paste to form reliable joints.
Its biggest strength is scalability. Reflow ovens handle high volumes efficiently and keep costs reasonable for straight-run production lines. That’s why many American manufacturers still rely on reflow for large batch runs.
But there are downsides. Heat transfer isn’t perfectly uniform because hot air circulation can create hotspots. This variability raises the risk of solder joint voids and thermal shock to sensitive components. Plus, as PCB designs get smaller and more complex, maintaining precise thermal profiles has become a bigger challenge. Still, many legacy SMT lines across the U.S. stick with reflow soldering, though it’s clear that newer packaging demands sometimes push its limits
When comparing vapor phase soldering (VPS) to reflow soldering, thermal uniformity is a key factor that shows clear differences in performance.
VPS offers superior heat consistency with less than a 5°C temperature variance across the board. This uniform heating comes from the inert vapor envelope that surrounds every component evenly, regardless of size or shape. On the other hand, convection reflow soldering often shows temperature gradients anywhere from 10 to 20°C due to hot air circulation. These uneven zones can cause hotspots that risk damaging sensitive parts.
VPS operates in a low-oxygen, inert fluid atmosphere, which reduces oxidation and minimizes risk of warping and thermal stress. That keeps components safer during the soldering cycle. Reflow soldering typically requires nitrogen gas to reduce oxidation, adding complexity and cost, and still may have areas prone to stress from uneven heating.
With VPS, you get precise control over the soldering profile. The vapor’s fixed boiling point extends the liquidus time—the window when solder is molten—allowing for better wetting and joint formation. Additionally, vacuum options in VPS systems help eliminate voids, supporting stronger solder joints. In contrast, reflow profiles fluctuate based on board mass and layout, sometimes making it tougher to maintain consistent results.
This side-by-side look makes it clear that when thermal uniformity and component reliability are your priorities, vapor phase soldering stands out—especially in advanced packaging and yield-focused SMT assembly.
When it comes to yield, vapor phase soldering (VPS) and reflow soldering deliver quite different results. VPS typically achieves a 95-99% first-pass success rate, with fewer cold joints and solder bridges. Reflow soldering, on the other hand, generally falls between 85-95% yield, especially for complex assemblies like BGAs, where VPS has been shown to reduce defects by around 18% in case studies.
VPS: Best suited for low to medium volume runs due to its batch processing efficiency. The upfront cost might be higher, but you gain consistent quality which lowers rework costs.
Reflow soldering: Ideal for high-speed, large-scale production. Quicker cycle times come with a higher chance of defects and rework.
Solder paste compatibility: Both VPS and reflow processes require solder pastes optimized for their thermal profiles.
Board size and complexity: Large or uneven boards can challenge uniform heating in reflow ovens compared to VPS.
Automation integration: Smooth, automated handling improves repeatability for both methods. Jeenoce specializes in smart manufacturing systems that seamlessly integrate VPS for better yield and cost control.
| Metric | Vapor Phase Soldering | Reflow Soldering |
|---|---|---|
| First-pass yield | 95-99% | 85-95% |
| Defect types | Fewer cold joints, bridges | Hotspots, voids, thermal shock |
| Cycle time | Moderate (batch processing) | Fast (continuous line) |
| Return on investment (ROI) | Moderate to high long-term gains | Lower initial cost, possible higher rework cost |
By focusing on these factors and utilizing Jeenoce’s equipment tailored for VPS, manufacturers can optimize their packaging processes — balancing cost with improved reliability and thermal uniformity for better overall yields.
In automotive electronics, vapor phase soldering (VPS) proved a game-changer. By switching to VPS, manufacturers cut thermal-related defects in sensor modules by 22%. This means fewer reworks and more reliable parts—critical for safety and performance in vehicles. The uniform heat from VPS helped avoid hotspots and reduced stresses that often cause failures in complex assemblies.
For consumer tech, especially with 5G prototypes, moving from convection reflow soldering to VPS boosted thermal uniformity significantly. Manufacturers saw yield improvements jump from 88% to 97%, cutting down issues like solder joint voids and inconsistent heating. This upgrade made prototyping faster and less frustrating, helping teams bring products to market with fewer delays.
Hybrid approaches work best: Combining VPS for complex, sensitive runs with reflow for simple, high-volume jobs balances cost and quality.
Mixed-volume production benefits: Small to medium batches gain from VPS’s precision without sacrificing throughput.
ROI is clear: Investing in VPS technology pays off by lowering defects, reducing rework, and improving first-pass yield.
These case studies show how adapting packaging processes with VPS can elevate your SMT line’s yield and consistency without losing efficiency.
Implementing vapor phase soldering (VPS) and reflow soldering comes with its own set of hurdles and best practices. Knowing what to expect can save time and improve your SMT line’s performance.
Higher upfront costs: VPS systems often require a bigger initial investment compared to traditional reflow ovens.
Fluid management: Maintaining the inert fluid that creates the vapor requires careful handling and routine checks.
Modern enclosed systems: The closed design offers benefits like reduced contamination but can make maintenance and troubleshooting more demanding.
Profiling complexity: Getting the thermal profile right is tricky, especially with varied board sizes and component types.
Best for standardized runs: Reflow shines in high-volume, uniform production but struggles with odd shapes and fine-pitch parts.
Use thermal simulation software to map heat distribution and avoid hotspots.
Provide operator training focused on recognizing issues and adjusting profiles.
Partner with specialists like Jeenoce for SMT line integration and smooth, plug-and-play upgrades that minimize downtime.
AI-optimized thermal profiles to dynamically adjust soldering processes in real time.
Adoption of eco-friendly fluids in VPS to align with sustainability goals.
Integration of Industry 4.0 technologies to enable smarter, more connected manufacturing lines.
By addressing these challenges and leveraging industry best practices, Southeast Asian electronics manufacturers can significantly enhance their yield and process reliability in both vapor phase and reflow soldering.
When it comes to boosting your SMT line’s performance, choosing the right soldering process is key. Vapor Phase Soldering (VPS) stands out for its unmatched thermal uniformity and consistent yield, making it ideal for precision packaging and complex assemblies. On the other hand, reflow soldering scales well for high volumes and offers cost-effective throughput for straightforward production runs.
Your choice should hinge on your production volume, board complexity, and yield goals. VPS shines with odd-form components, sensitive BGAs, and flexible circuits where uniform heating really matters. Reflow remains a reliable option for large-scale, linear workflows but may face challenges with miniaturized or high-mix production demands.
Partnering with Jeenoce gives you more than just equipment. We offer smart SMT line integration, custom automation solutions, and a free audit to help identify the best soldering approach for your specific needs. Our cutting-edge VPS and reflow technologies come with seamless automation support designed for the U.S. manufacturing environment.
Elevate your smart manufacturing setup by focusing on yield-first innovations and precise thermal control. With Jeenoce, you get a perfect balance of technology and service to optimize your packaging processes and maximize ROI.
Contact Jeenoce today to schedule your free soldering process audit and explore tailored solutions that fit your production goals.
